The
Bill Edwards Finger-Tite Locking Nut
Kramer introduced the Bill edwards nut in 1985 as a cool alternative
to the allen wrenched clamping types. Although not initially created
by Kramer themselves, they became distributors of the Edwards nut for
a short while. The nut was a swell invention which allowed gross tuning
and eliminated the need for allen wrenches. It worked by three "flap"
type metal pieces on hinges compressing the strings to the base. Different
string thicknesses could be compensated by
adjusting the inner screws by first removing the "flap" pieces.
The unit worked great and today, is somewhat hard to find.
|
|
|
|

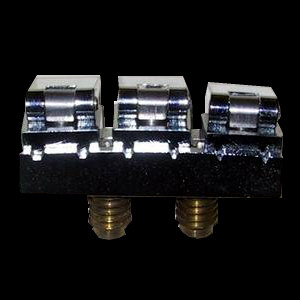

The
actual "nut" (Floyd Type)
Click on the thumbnail for a larger version
|
|
The
ad is also curious as there are two non-angled banana heads with no
retainer bar and a three and three Les Paul type headstock of which
Kramer never produced. Not much information on these currently. Before
long, Kramer along with other manufacturers, introduced their own versions
of the unit with inferior results thereby destroying the image and the
legacy of the cam-tightened nut. Kramer and Bill Edwards parted ways
after a short run. I believe the edwards nut ran under his own name
for awile afterward but not for very long. The original Edwards nut
can sometimes be found on Ebay. The Kramer versions are almost non-existent
and are extremely rare.
|
|
83
Catalog Page
Click on the thumbnail for a larger version |
87
Catalog Page
Click on the thumbnail for a larger version |
Finger
Tite Installation Notes and Diagrams
|
|
|
|

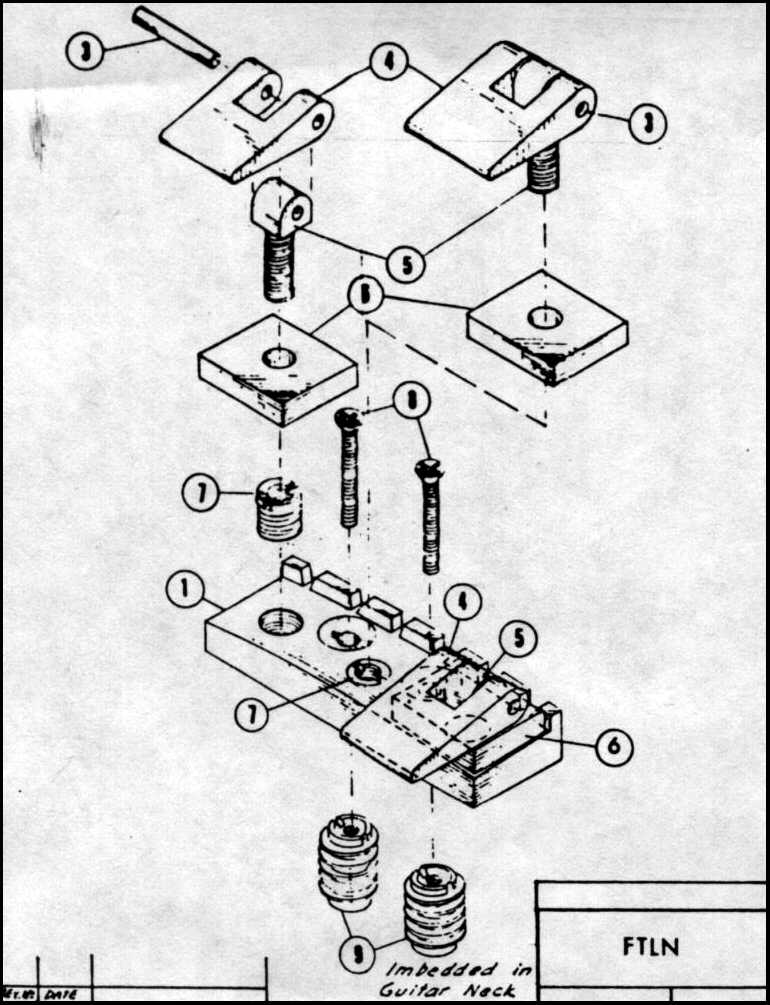

ReStandard
Nut Diagram
(For Floyd Rose Types) |

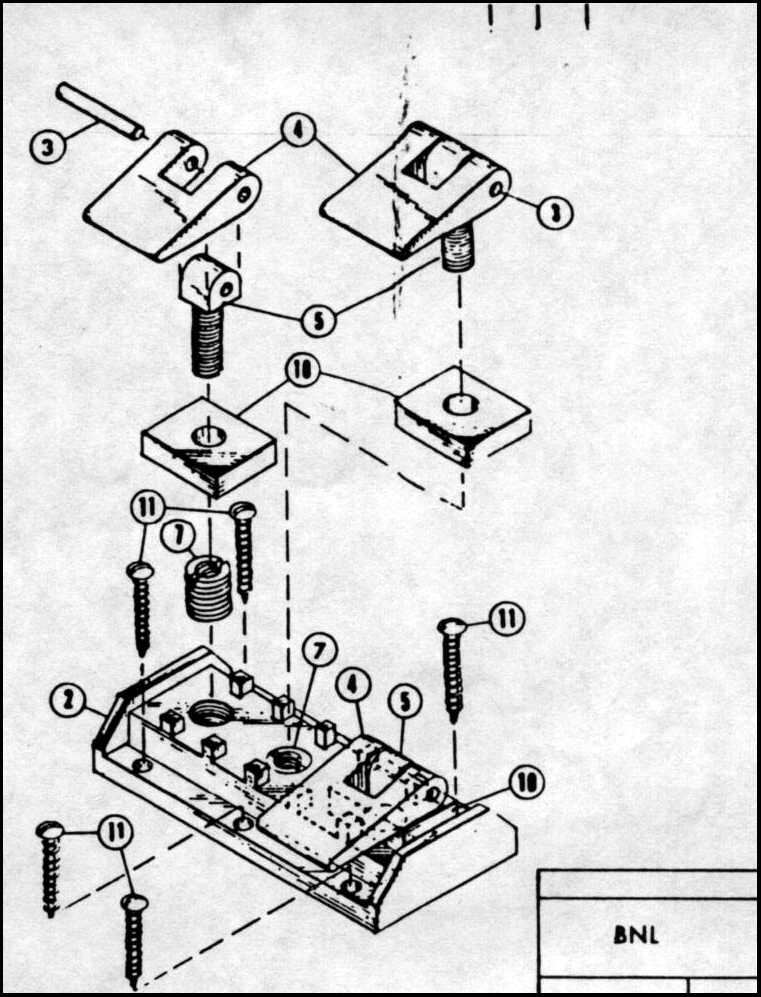

eBehind
the Nut Diagram
(Kahler Type) |
|
Installation
Instructions
|
Finger
Tite Types and Variations
|
|
|
|
Prototype |

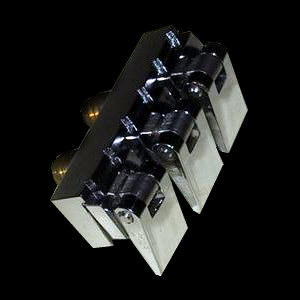

Floyd
Rose Type Nut |

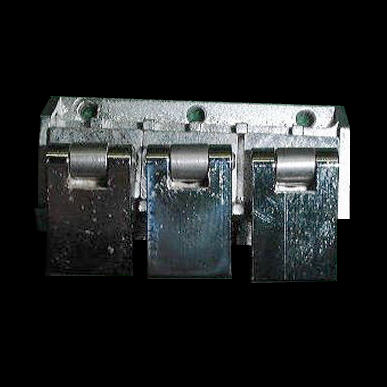

Behind
the Nut (Kahler Type) |

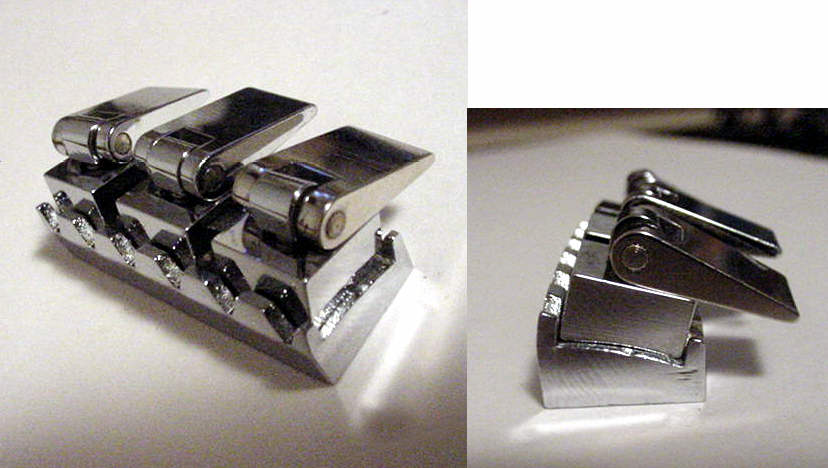

Kramer
Version
(considered inferior to Edwards) |
Information
from Bill Edwards on the experience of creating the Fingertite Locknut:
Taken from an interview with Bill Edwards.
You also hold the patent for the Finger Tite
Locking Nut. What exactly is that and what is the story there?
The horror... the horror. This is a truly long story. In a moment of
weakness, I actually attempted to relate it to a reporter for the Wall
Street Journal who was doing an invention story several years ago. I
spent hours relating the story in minute detail. Later when I read it,
he'd got so many facts wrong that I realized that it was too complicated
unless you happened to already know the principles and what they do
or did. Just the names of the parties involved - Kramer, Kahler, Schaller,
Fender, Yamaha, blah blah... they tend to get mushed together if you're
not in the biz. Suffice it to say that I got screwed blued and tattooed
by several industry heavyweights. The device was an improvement on the
Floyd Rose locking nut, which I'd dealt with as a frequent repair item
in my store. Everyone stripped out the hex screws, or lost the 3 mm
wrenches and went nuts because the very thing supposed to keep their
gtrs in tune kept them from tuning up. The Finger-Tite Locking Nut was
a cam lever operated device designed to eliminate the wrenches, but
clamp the strings securely. Again, the idiosyncracies (and costs) of
the legal system defeated this nice little niche product. I spent two
years of overtime working out different designs and shapes before I
found one that worked. About ten or fifteen companies liked the idea
so much they decided to make their own - invariably half-assed - version.
In the end they "poisoned the well" of consumer opinion about
mine, which was the one that actually worked correctly. I remember my
little booth at NAMM and people coming by after having bought the crappy
copies and saying "Those things don't work." It was a terrible
experience. It hurt me and my family badly.
Postscript:
I thought it was all behind me when one day about a year or two ago,
I get a call from a customer regarding Fretboard Logic. He said "By
the way, I'm Gary Kahler's son. Ever heard of him?" My throat clamped
up and I actually started choking and actually couldn't speak until
I got some water. Issues? Hey - I bought a subscription.
