Pickups
Kramer
utilized Schaller pickups in the early years of the Pacer and used them
on models such as the Baretta, Vanguard, Condor, and Voyager. Kramer
then switched to Seymour Duncan sometime in 1985. This page focuses
on the American (6 string, not basses) Model pickups used, and in which
guitars they were used as standard.
American Series Pickups used from 1981-1990
Schaller
Schaller
pickups are black in color, with the bobbins being black as well. The
top of the pickup is textured lightly, and generally over time, the
bobbins rust. These pickups have a very hot, bright sound with a nice
touch of bottom end. In my experience, these pickups very closely resemble
a Seymour Duncan Custom, and have a very "brown" sound. There
are some variations on the Schallers. Schallers that came stock on the
Pacer's, Vanguards, Condors, and Voyagers all had the standard flat
head screw and flat bobbins. This was the case on the original Baretta
Schaller pickup as well, with the exception that it had chrome bobbins,
was zebra colored, and was not textured.. The bobbins on the other variation
are actually allen head, and these were found on Pacer's with pickguards
(Pacer Deluxe as referenced in the 1983 catalog. The pictures below
show the differences in the pickups.
|
|
|
|

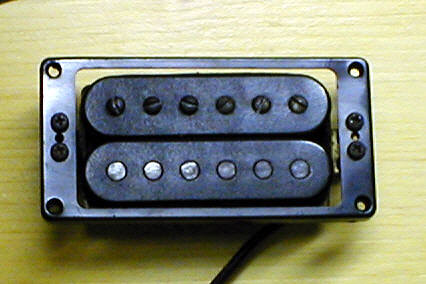

Common
Schaller Humbucker
Standard screw head bobbins |

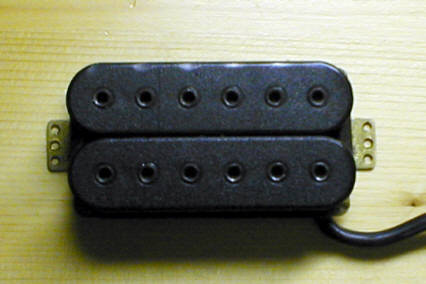

Schaller
Humbucker
Pickguard version with allen head screws |
Schaller
Humbucker
Found on early, wood neck Kramers |
Schaller
Reverse Zebra
Standard Equipment on Kramer Barettas |
Although
the single coils of the Schaller years are not pictured, they were used
on Kramer guitars equipped with single-coils during and prior to 1985.
Notice on these pickups how they have three mounting holes per side.
Seymour
Duncan
Sometime
in 1985, Kramer switched to Seymour Duncan on certain models, and later
all models were standardized. The only variations in the Duncan's were
the model used, and the zebra color on the Baretta vs. the other models.
In most cases, the JB was used as the primary bridge humbucker on all
models, but there are exceptions. I've included a link and a description
of each Duncan pickup used in this section from the Seymour Duncan website.
Please see the catalog section on the company
page to find out which pickups were used in each guitar model. Please
note as well, the Seymour Duncan silkscreen logo did not appear on any
Kramer model in the 80's. Most, if not all of these models can still
be purchased new, and are listed below in order of their commonality.
|
Seymour
Duncan JB- (SH-4/TB-4) - A completely balanced coil configuration
produces great harmonics and a high output with just the right blend
of sustain and distortion. You get the best of both worlds: from
sweet warm tones to raw rock 'n' roll. Click
here to listen. |
|
Seymour
Duncan Jazz (SH2) - This pickup is for players who need an accurate,
clear tone for fast jazz runs. The brighter sound has slightly less
output and is a good match with most pickups. Commonly seen in neck
positions. I believe this pickup was referred to as the J.N. in
Kramer literature (correct me if I'm wrong). Click
here to listen. |
|
Seymour
Duncan APS - 1 (Vintage Staggered Single Coils) - APS-1 Alnico
II magnets are the musical magnets. Their softer magnetic field
provides a warmer, sweeter tone and eliminates the brittle, glassy
sound associated with newer instruments. The result is a freer,
more natural string vibration for greater sustain. Click
here to listen. |
|
Seymour
Duncan Full Shred (SH-10/TB-10) - This pickup was built for
some of rock 'n' roll's hottest guitarists who wanted a pickup with
a blazing expressive sound. Double rows of Allen head screw pole
pieces help fine tune the high end. The tone is fat and chunky,
yet perfectly defined for speed riffs. Click
here to listen. |
|
Seymour
Duncan Hot Rails (SHR-1) - One of the highest output pickups
SD makes. It's a humbucker that fits into a normal single coil slot,
so you get the noise canceling effect without cutting a large hole
in your guitar. The two thin blades with powerful coil windings
give you the incredible sustain and a fat, full sound that's needed
for playing heavier rock music. Click
here to listen. |
|
Seymour
Duncan Trembucker - Correct pole piece alignment increases string-to-string
balance for a smooth, modern sound from guitars with Floyd Rose
and similar locking tremolo bridges. Click
here to listen. |
|
Seymour
Duncan Hot Lead (SSL-3 Single Coil) - Pickup is now referred
to as "hot" on the SD site, I'm assuming this is the same
pickup as used in the Elliott Easton Pro II. This is the next step
up: Hotter than the vintage models with more sustain, fullness and
output. The raised flat pole pieces are taller Alnico V magnets
for a stronger and deeper magnetic field. Extra coil windings give
you extra power. Click
here to listen. |
Bartolini
|
The
Bartolini pickup was used in the Kramer Ripley model, which had
the ability of panning each string in stereo. From the 1985 Catalog:
The pickup assembly houses six separate high-output humbucking pickups.
The lead wire from each pickup connects directly to its own electronic
tuning network and low-noise operational amplifier. |
Floyd Rose Sustainer Pickup
|
This pickup was used on Kramer Sustainer models and was found in
the neck position. By using a battery, notes on the fretboard can
be sustained in a variety of different ways, in these modes (taken
from the Kramer Sustainer flyer):|
Rare Sustainer Pickup
Show here as well, a rare Sustainer pickup with the Floyd Rose name
imprinted. Thanks go out to Mitchel at www.meanstreetguitars.com
for the picture!
Click here for the Kramer
Sustainer User's Manual - Requires Adobe Acrobat |
Descriptions
of Sustaining Modes
Fundamental Mode - Primary fundamentals of the note or notes being
played will be sustained.
Harmonic Mode - Relative to the position on the neck, the Sustainer
will sustain the second, third, fourth, and sixth harmonics and can
actually "transform" a basic note into harmonics. This effect
can also be triggered manually by the players technique.
Other features of the Floyd Rose Sustainer include a Sustain Intensity
Control which varies the sustain amplitude and a low battery indicator.
VK Note - You can now purchase a new and improved sustaining pickup
from Fernandez Guitars.
EMG Active Pickups
|
EMG
pickups were utilized in the Spector Series. Even though a Humbucker
is only pictured here, single coil EMG were also used in Spector
Series guitars. |
Other Aluminum Neck Pickups

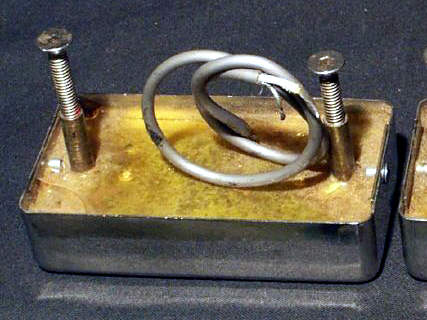

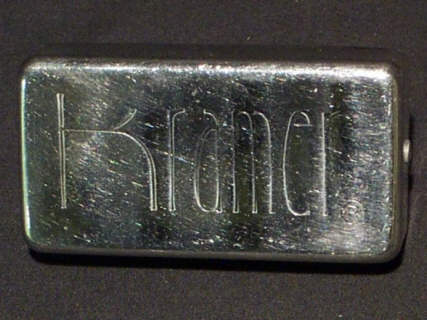

Here's
a few shots of pickups used in some Aluminum neck models. Check out
the Kramer logo.
Pickup Rings
|
Here's
a shot of a pickup ring used on some Aluminum neck models. These
covers were made out of actual wood, from walnut. These have a tendency
to crack or break because they are real wood, but this is an extremely
nice touch of craftsmanshihp from the old Kramer days. |
|
Two
styles of pickup mounting rings were used, with the biggest difference
being the ring used on the Schaller humbuckers. These consisted
of three holes per side of the ring since Schallers used two screws
for height adjustment. Additionally, all humbucking pickup rings
had a trapezoidal shape on the edge, they were not "flat"
(see picture). |
